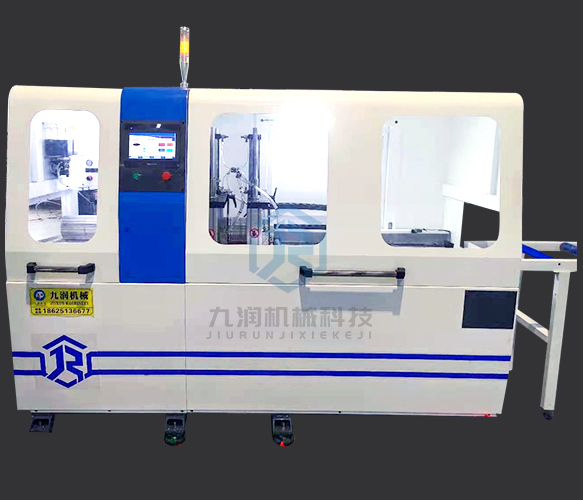

JR-455CNC-3A-1S 全自动拉尾料铝切机
序号项目单位参数1夹紧方式气缸垂直夹紧+侧顶水平夹紧2进刀方式伺服/液压(进刀方式可选配）3主电机功率Kw5.54进刀液压电机KW0.75(选配）5进刀伺服电机KW1（选配）6适用电压380V 50HZ7主轴转速转/分29008适用锯片外径φ355-φ455mm 内孔φ25.4mm9最大锯切高度mm21010最大锯切宽度mm45011单次送料最大行程m
在线询价
产品详情
机型Model | JR-455CNC-2A-1S | JR-505CNC-2A-1S | JR-610CNC-2A-1S | JR-750CNC-2A-1S |
| 主电机功率Cutting motor power | 5.5KW | 5.5KW | 7.5KW | 7.5KW |
| 主轴转速Spindle speed | 0-3000rpm | 0-2800rpm | 0-2200rpm | 0-1800rpm |
| 锯片规格Saw blade specifications | φ305-φ455mm | φ355-φ505mm | φ355-φ610mm | φ455-φ750mm |
| 切割角度Cutting angle | 90° | 90° | 90° | 90° |
| 最大锯切高度Maximum sawing height | 125mm | 155mm | 210mm | 270mm |
| 最大锯切宽度Maximum sawing width | 360mm | 420mm | 470mm | 550mm |
| 电压Voltage | 国内380V 50HZ 国外依客户所需定制Domestic 380V 50HZ, customized according to customer needs overseas | |||
| 切割精度Cutting accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| 所需空压Required air pressure | 5-8kg/cm² | 5-8kg/cm² | 5-8kg/cm² | 5-8kg/cm² |
| 送料伺服电机功率Feeding servo motor power | 0.85KW | 1KW | 1.3KW | 1.8KW |
| 进刀伺服电机功率Feed servo motor power | 1.3KW | 1.3KW | 1.3KW | 1.8KW |
| 出、入料架长度Length of infeed and outfeed racks | 依客户所需定制Customized accordingtocustomer needs | |||
| 吸尘器功率Vacuum cleaner power | 3KW | 4KW | 4KW | 4KW |
| 单次送料最大行程Maximum single feeding stroke | 1000mm | 1000mm | 1000mm | 1200mm |
| 机器尺寸Machine size | 2800*1600*1900mm | 3000*1800*2100mm | 3200*2000*2300mm | 3400*2200*2500mm |
| 重量Weight | 1.45T | 1.7T | 2T | 2.3T |
| 适用材料Applicable materials | 适合锯切新能源汽车零部件、散热片、铝材、铜材、pv、塑钢材料、电木板、亚克力塑胶、铁氟龙、蜂巢板、木板等非铁金属材料Suitable for sawing new energy vehicle parts, heat sinks, aluminum, copper, PVc, plastic steel, bakelite, acrvlic plastic, PTFEhoneycomb board, wood board and other non-ferrous metal materials | |||
