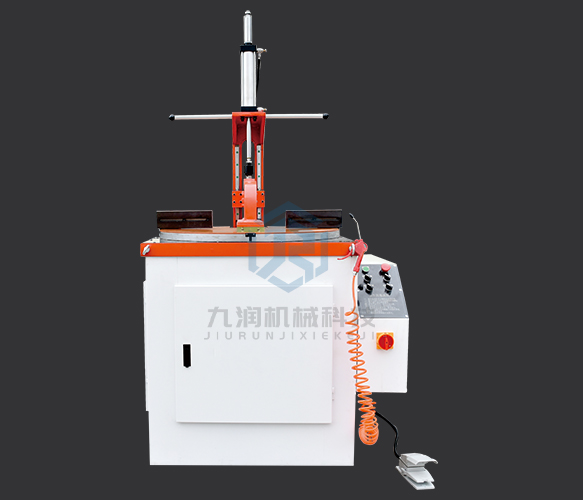

JR-455Q上下压紧半自动铝切机
隐藏式锯片，可以安全的上下工作;自动喷油，切面无毛刺，锯片更耐用;一次可单支或多支锯切，少量或大批量生产告适宜;解决了传统机台铝屑飞溅的弊病，改善工作环境;夹紧切割的程序都由电气控制;工作时间可调，夹紧压力可调;切薄壁材料不变形速度快，这样大大提高了工作效率
在线询价
产品详情
机型Model | JR-455Q半自动/上下压紧 | JR-505Q半自动/上下压紧 | JR-610Q半自动/上下压紧 |
| 主电机功率Cutting motor power | 4KW | 4KW | 5.5KW |
| 主轴转速Spindle speed | φ305-φ450mm 内孔lnner hole25.4mm | φ305-φ505mm 内孔lnner hole25.4mm | φ305-φ610mm 内孔lnner hole25.4mm |
| 锯片规格Saw blade specifications | 0-3000rpm | 0-3000rpm | 0-2200rpm |
| 切割角度Cutting angle | 90°/45° | 90°/45° | 90°/45° |
| 最大锯切高度Maximum sawing height | 125mm | 155mm | 220mm |
| 最大锯切宽度Maximum sawing width | 300mm | 320mm | 420mm |
| 锯切能力圆形Circular sawing ability | 110*110mm | 140*140mm | 195*195mm |
| 锯切能力方形Square sawing ability | 120mm | 155mm | 220mm |
| 电压Voltage | 国内380V 50HZ国外依客户所需定制Domestic380V 50HZ,customized according to customer needs overseas | ||
| 所需空压Required air pressure | 5-8kg/cm² | 5-8kg/cm² | 5-8kg/cm² |
| 进刀方式Feed method | 气油缸上下进刀Air cylinder up and down feed | ||
| 压料方式Material pressing method | 气缸/龙门架(上下压紧)Cylinder/gantry frame(upper and lower compression) | ||
| 机器尺寸Machine size | 800*800*1650mm/900*900*1750mm | 850*850*1750mm/900x900*1900mm | 900*900*1800mm/1000*1000*2100mm |
| 重量Weight | 0.35T/0.4T | 0.4T/0.45T | 0.58T/0.6T |
| 适用材料Applicable materials | 适合锯切新能源汽车零部件、散热片、铝材、铜材、pv、塑钢材料、电木板、亚克力塑胶、铁氣龙、蜂巢板、木板等非铁金属材料Suitable for sawing new energy vehicle parts, heat sinks, aluminum, copper, PVc, plastic steel, bakelite, acrylic plastic, PTFEhoneycomb board, wood board and other non-ferrous metal materials | ||
